Maximum Insertion Depth of mounting bolt on traverse unit
To avoid operational issues, it is essential that the bolt length used for mounting guide assemblies does not exceed the specified maximum insertion depth. Exceeding this depth (N) can lead to several problems, including:
- Failure of the unit to reverse at end limits
- Reduced operational speed
- Inconsistent pitches between forward and reverse directions
- Potential damage to the reversal plate

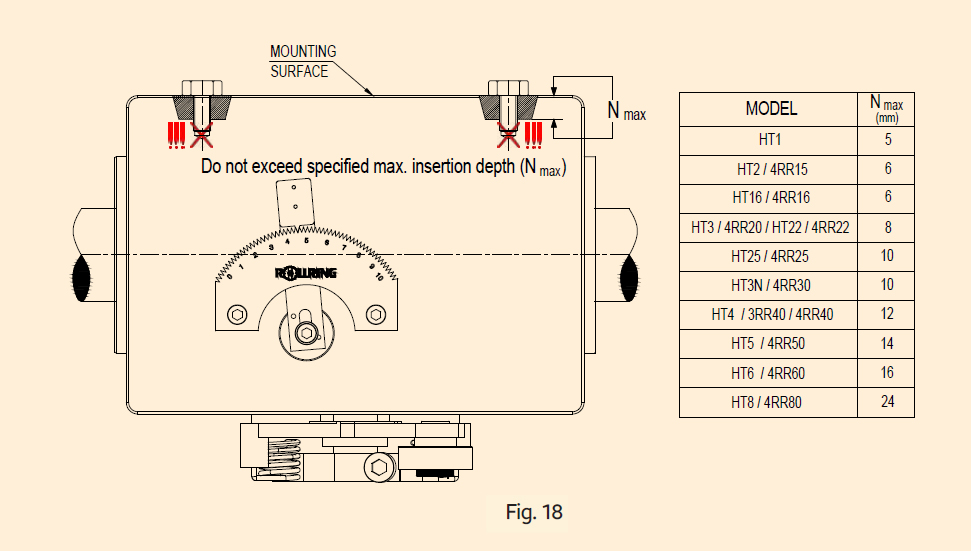

Important: Refer to Figure 18 for the maximum insertion depth specifications applicable to different models.
