Modifying Traverse Unit for Shaft Rotation Direction

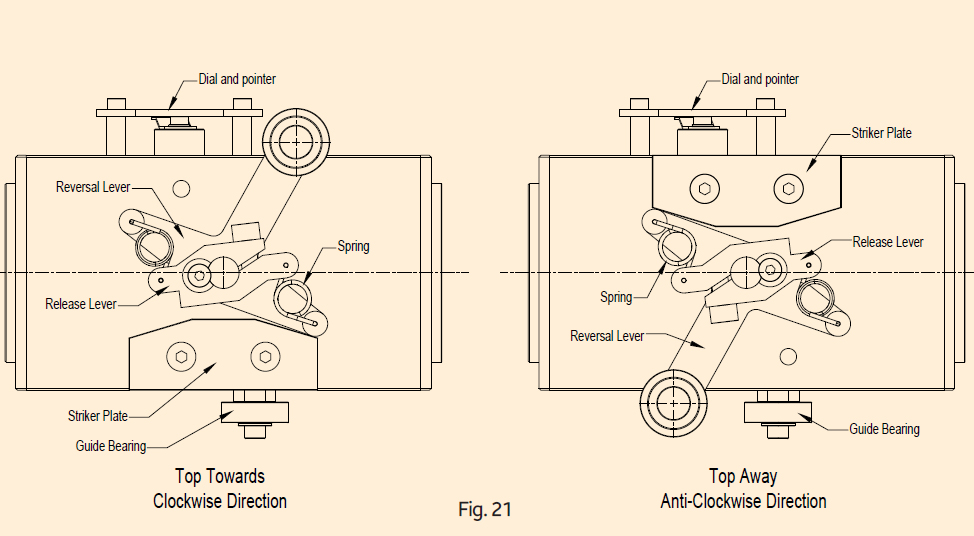

The traverse unit can operate in either the clockwise or counterclockwise direction of shaft rotation. It may be necessary to modify the reversal mechanism to match the shaft's rotation direction. This modification can be done easily without opening the unit. Follow these steps:
1.Remove the Release Lever
Loosen the bolt and detach the release lever.
2. Remove Springs and Reversal Lever
Carefully remove the springs and the reversal lever.
3. Detach the Striker Plate
Remove the striker plate from its current position.
4. Refit the Striker Plate on the Opposite Side
Mount the striker plate on the opposite side from where it was originally positioned.
5. Refit the Reversal Lever with a 180° Turn
Reattach the reversal lever after rotating it 180°.
6. Reassemble Springs and Release Lever
Reinstall the springs and release lever. Ensure the spring lugs are not bent. Insert the spring long lug into the reversal lever and the short lug into the release lever.
7. Test the Reversal Lever Manually
Manually operate the reversal lever and listen for the knocking sound to ensure proper function. After completing these steps, your traverse unit will be ready to operate in the opposite direction of shaft rotation. Follow the instructions carefully to ensure a successful conversion without complications. (Refer to Figure 22 for a visual guide.)
Always adhere to the manufacturer's guidelines for proper usage and modification.
