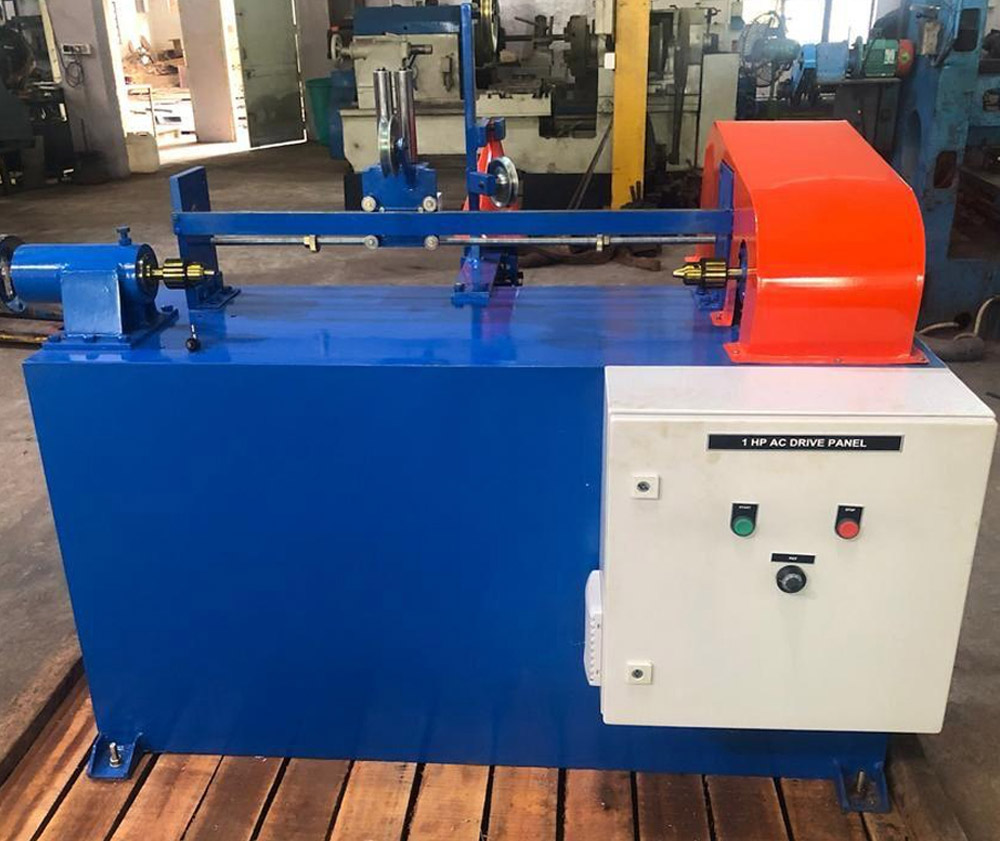

Rewinding Machine For Winding Copper Wire On Glass Tube

Glass tube dia (OD) :8mm to 10mm/p>

Tube length : 750 mm Max

Tube Holding : Glass tube is loaded between head stock and Tail Stock. Screw type adjustment will be provided on Tail stock for loading and unloading.

Traverse : By Rollring Traverse unit.

Drive Transmission : By V Belt

Tensioning stand : Provided with guide pulleys.

Drive : By 1 HP AC Motor 3 phase 415 volts. Variable frequency drive for speed control will be provided

Pay Off : Pay off for loading 5 set bobbin with copper wire is supplied.

Bobbin Holding : Shaft type with Tapered Pintles

Wire Tensioning : Tensioning break provided

Click on the link below to view the video

https://www.youtube.com/watch?v=ggG8kaKYBLA
